Logic-Level MOSFET Module (3.3V gate compatible)

Description

A Logic-Level MOSFET Module (3.3V gate compatible) is an electronic switching module designed to bridge the gap between low-power microcontroller logic outputs (like your STM32 at 3.3V) and high-power DC loads (such as motors, solenoids, high-power LED strips, or heaters).

Product Description

• Core Principle: Standard power MOSFETs often require $10\text{V}$ on their gate to fully turn “ON” (saturation). Logic-level MOSFETs (or modules built with them, like the IRF520 or optimized MOS gate drivers) are specially engineered to switch fully ON even when driven by low-voltage $3.3\text{V}$ or $5\text{V}$ microcontroller pins.

• Optical Isolation / Switching: These modules allow a tiny digital signal to control heavy loads safely, preventing high-voltage or high-current transients from feeding back into your sensitive STM32 development board.

• Interface: Typically features screw terminals for the external high-power load/power supply and standard 3-pin headers (Signal, VCC, GND) for microcontroller connection.

Key Specifications

• Gate Logic Compatibility: Fully compatible with 3.3V and 5V microcontrollers.

• Load Voltage Range: Typically handles DC loads from 0V up to 24V (depending on the specific MOSFET used on the module).

• Switching Current: Standard hobbyist modules (like the IRF520 board) handle up to 3A to 5A directly (higher with proper heatsinking), while robust multi-channel modules can handle more.

Price Range

• Single-Channel Modules (e.g., IRF520 board): Typically costs between ₹30 and ₹60 per module.

• Multi-Channel Modules (e.g., 2-channel or 4-channel MOSFET boards): Typically ranges from ₹150 to ₹350.

Visual Reference

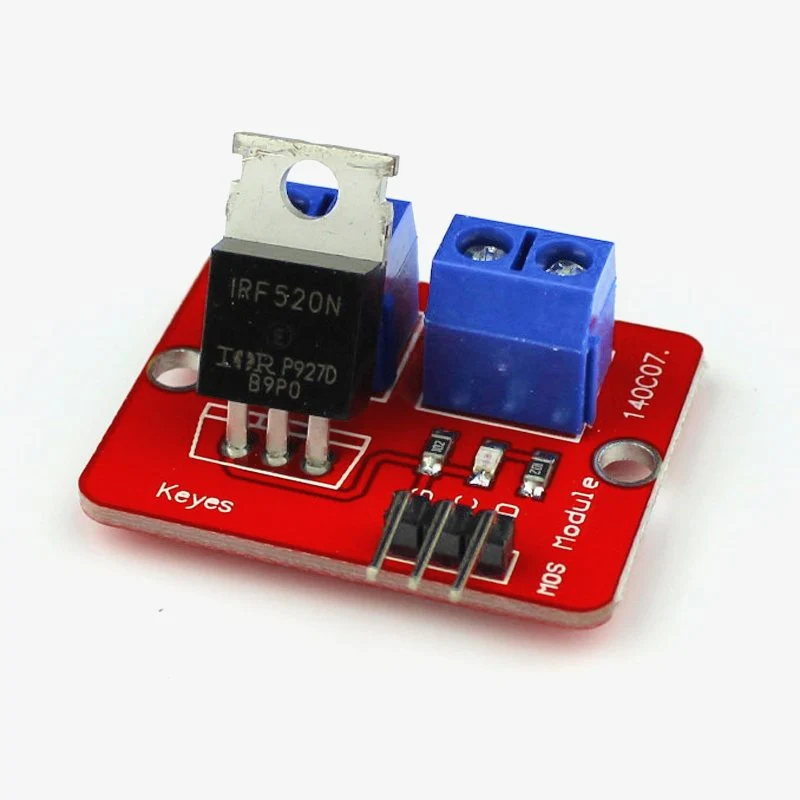

• Image / Search Term: IRF520 MOSFET driver module or 3.3V 5V MOSFET control board.

• You can easily view and save high-resolution product photos by searching IRF520 MOSFET module on component storefronts like Robu.in, Quartz Components, or Amazon.

Usage Tips

• PWM Control: Because MOSFETs support fast switching, you can connect this module to a hardware PWM pin on your STM32 to control the speed of DC motors or dim high-power LED arrays smoothly.

• Ground Sharing: Always ensure the ground (GND) of the external power supply driving your load is tied directly to the GND pin of your STM32 board.
