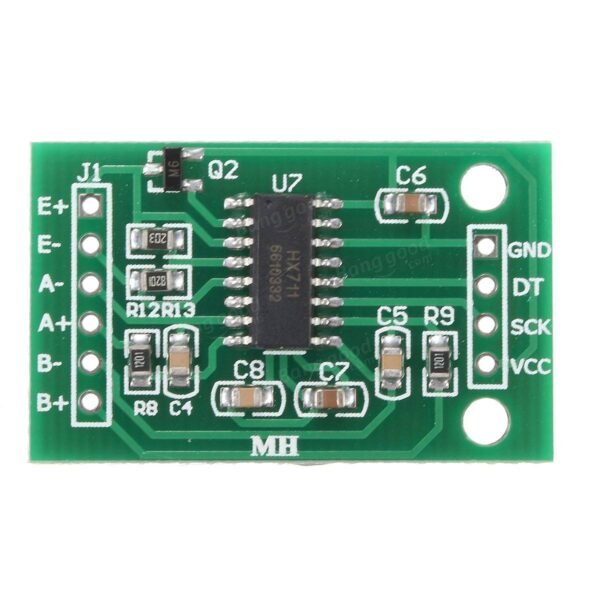

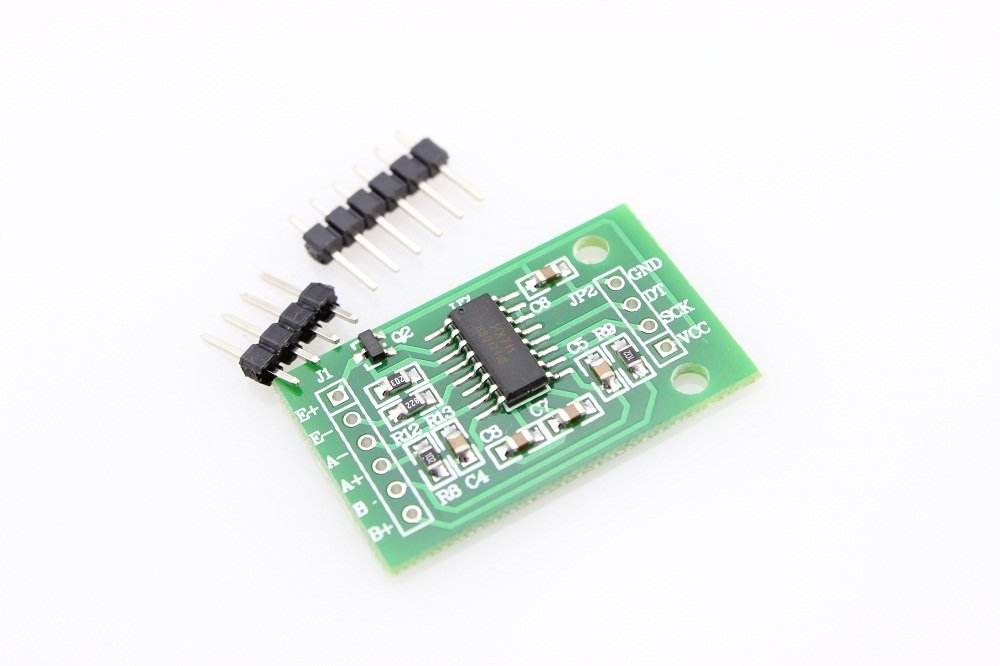

Weight/Stress Load Sensor with 24-bit ADC HX711

Original price was: ₹500.00.Current price is: ₹250.00. (GST Included)

High-precision load sensor with HX711 ADC for weight measurement.

  1. Output Sensitivity: 1.0 ± 0.1 mV / V.
  2. Two selectable differential input channels.
  3. On-chip active low noise PGA with the selectable gain of 32, 64 and 128.
  4. On-chip oscillator requiring no external component with optional external crystal.
  5. On-chip power-on-reset.
  6. Measurement Resolution: 24 bit.
Category:
Trust Badge Image

Description

  • This load sensor with HX711 amplifier provides precise weight and stress measurements. It is widely used in digital weighing machines, force measurement applications, and IoT projects. The HX711 24-bit ADC ensures accurate analog-to-digital conversion for stable and reliable readings.

Specifications:

  • Operating Voltage: 2.6V – 5.5V

  • Resolution: 24-bit

  • Sensor Capacity: 1kg – 50kg (depending on load cell used)

  • Interface: Serial digital output

  • Size: Compact module with pin headers

Features:

  • High precision with 24-bit ADC

  • Low-noise performance

  • Easy to interface with Arduino, ESP32, Raspberry Pi

  • Ideal for DIY weight scales

Applications:

  • Electronic weighing scales

  • Stress/load measurement

  • Industrial automation

  • IoT-based smart weighing
