Description
-

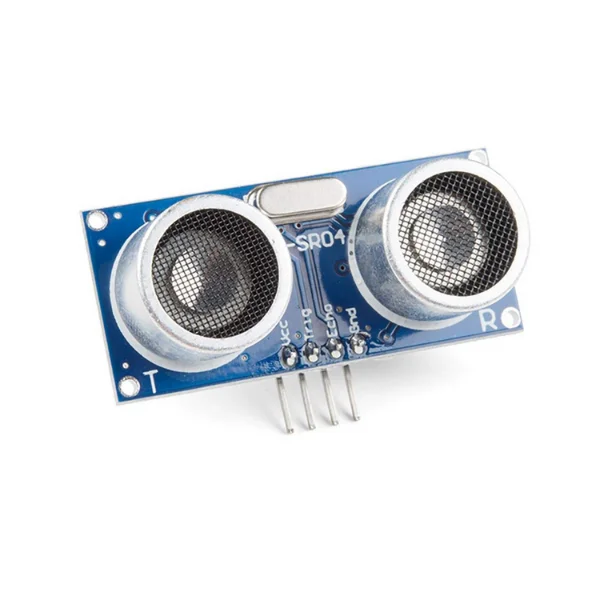

The HC-SR04 ultrasonic sensor is a popular module for distance measurement. It uses ultrasonic waves to calculate distances accurately between 2cm and 400cm. Widely used in robotics, automation, and obstacle detection projects.

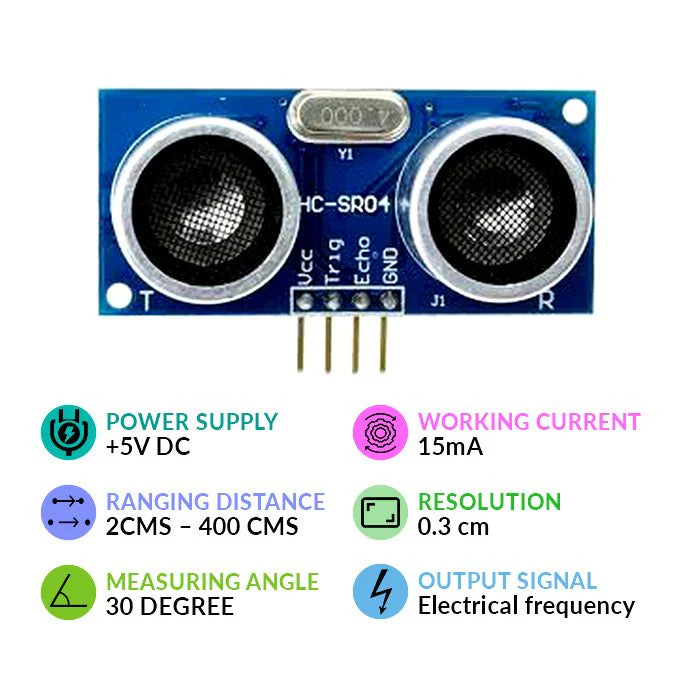

Specifications:
-
Operating Voltage: 5V DC
-
Measuring Range: 2cm – 400cm
-
Accuracy: ±3mm
-
Frequency: 40kHz
-
Trigger Input: 10µs TTL pulse
-
Dimensions: 45mm x 20mm x 15mm
Features:
-
Accurate non-contact distance measurement
-
Simple interfacing with microcontrollers
-
Low power consumption
-
Long measurement range
Applications:
-
Obstacle detection in robotics
-
Smart parking systems
-
Distance measurement devices
-
Security alarm systems
