Raindrop Detection Sensor Module – ADIY

Original price was: ₹300.00.Current price is: ₹150.00. (GST Included)

Detects rain and water droplets for weather monitoring and automation.

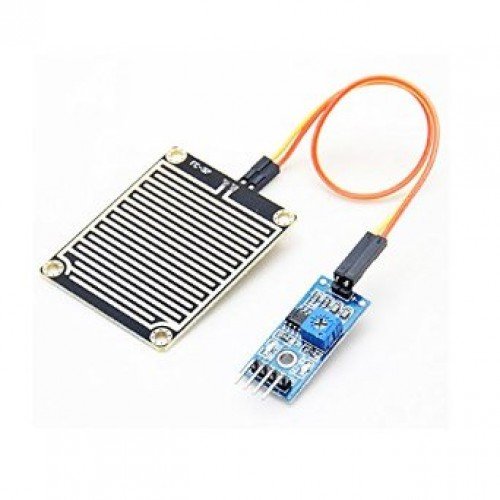

A Rain Sensor detects rain, snow, or hail using a sensing pad with exposed copper traces that change resistance based on water presence. More water lowers resistance and increases conductivity, while less water raises resistance. The sensor outputs a voltage corresponding to this change, which can be digitized using an LM393 comparator and connected to a microcontroller (like Arduino) to automate actions such as closing windows or shutters when rain is detected.

Category:
Trust Badge Image

Description

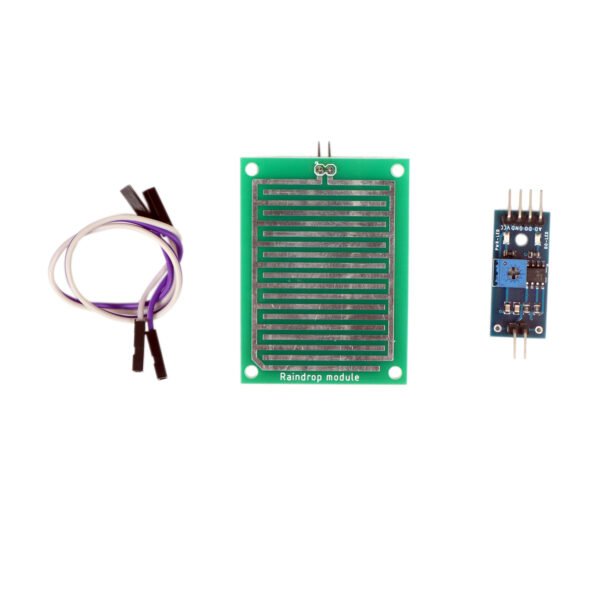

  • The rainfall sensor module detects water drops on its surface and provides both digital and analog outputs. It is widely used in weather stations, smart irrigation, and water detection systems. The module includes a rain board and control board for easy interfacing.

Specifications:

  • Operating Voltage: 3.3V – 5V

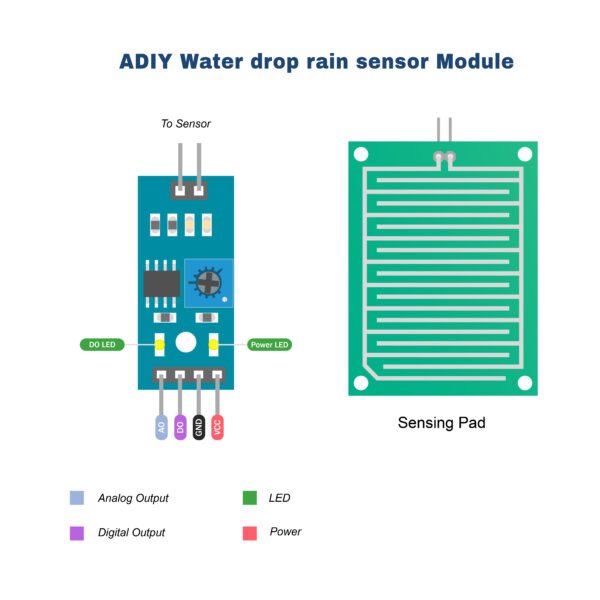

  • Output: Digital (DO) and Analog (AO)

  • Sensitivity: Adjustable via onboard potentiometer

  • Size: 54mm x 40mm

Features:

  • Dual output (analog & digital)

  • Adjustable sensitivity

  • Easy to use with Arduino and ESP boards

  • Lightweight and compact design

Applications:

  • Rainwater detection

  • Smart agriculture irrigation systems

  • Weather monitoring stations

  • Automatic wiper control for robotics
